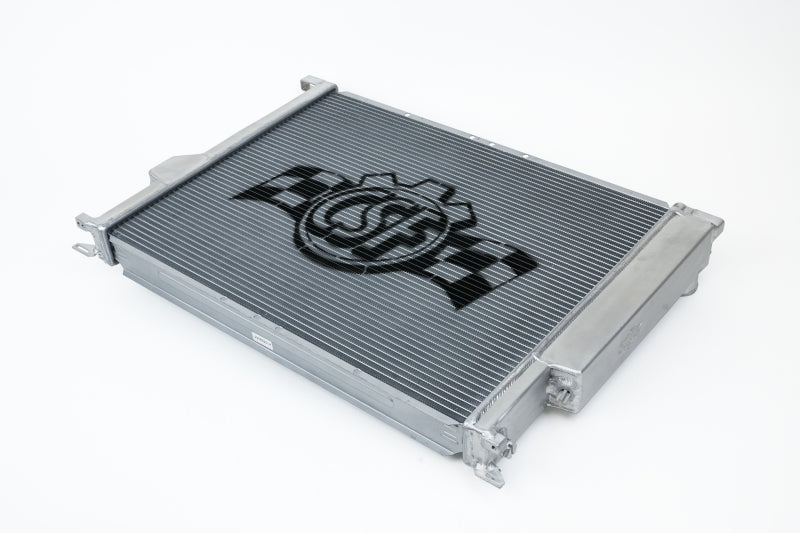

CSF 7211 BMW S54 Swap Into E36 E46 Chassis CSF High Performance Radiator
CSF High Performance Radiator for BMW E36 S54 Swap (also S50/S52 Swaps) - 7211 view 2CSF High Performance Radiator for BMW E36 S54 Swap (also S50/S52 Swaps) - 7211 view 3CSF High Performance Radiator for BMW E36 S54 Swap (also S50/S52 Swaps) - 7211 view 4CSF High Performance Radiator for BMW E36 S54 Swap (also S50/S52 Swaps) - 7211 view 5

Spec sheet

BrandCSF
Order code7211
Typecooling
Fits chassisE36 FIT-E36
EngineFIT-S50 FIT-S52 FIT-S54 FIT-NOTE-SWAP
Fitment
{"make":"BMW","chassis":["E36"],"engine":["S54"],"notes":["Engine swap","Also S50/S52 swaps per CSF"],"source":"CSF manufacturer page csfrace.com/products/7211-bmw-s54-swap-e36-high-performance-all-aluminum-radiator","flags":[],"verified":true}
CSF · cooling

CSF High Performance Radiator

for BMW E36 S54 Swap (also S50/S52 Swaps) - 7211

Checking fitment…
$599
Returns: 30-day returns on unused, uninstalled parts in original packaging. Electrical and special-order parts are returnable only if defective. Refund policy
Want it installed? Book it at SPEEDhaus, Edmond OK Not sure it fits? Ask us

Fits BMW E36 chassis cars with an S54 engine swap (CSF notes it also works for S50 and S52 swaps). Not a direct fit for factory E46 cars.

Because the S54 requires a much more robust oil cooling system than the E36's S52/S50, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.

  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
  • Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
  • Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)
  • CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • 2-Row - 42mm Ultra-High-Performance Core
  • Individually Leak and Pressure Tested
  • All-Aluminum Race Style Drain Plug
  • CSF's Exclusive B-Tube Technology
  • 2-Year Limited Warranty
  • Smooth Satin Finish

Brand: CSF   Part #: 7211

Make Chassis Engine Notes
BMW E36 S54 swap (also S50/S52 swaps) Per CSF fitment for #7211
