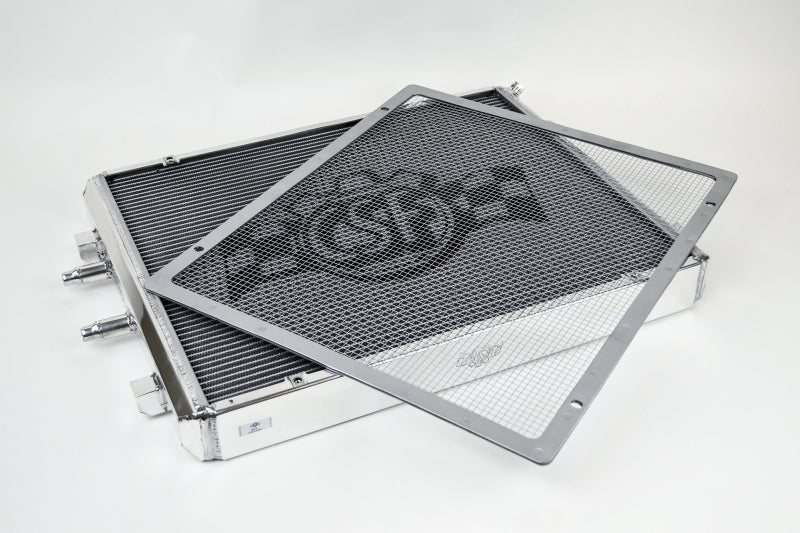

CSF 8075 2014+ BMW M3 M4 F8X CSF Front Mount Heat Exchanger w Rock Guard
CSF Front Mount Heat Exchanger with Rock Guard for BMW F80 F82 F83 M3 M4 (2014+) view 2CSF Front Mount Heat Exchanger with Rock Guard for BMW F80 F82 F83 M3 M4 (2014+) view 3CSF Front Mount Heat Exchanger with Rock Guard for BMW F80 F82 F83 M3 M4 (2014+) view 4CSF Front Mount Heat Exchanger with Rock Guard for BMW F80 F82 F83 M3 M4 (2014+) view 5

Spec sheet

BrandCSF
Order code8075
Typecooling
Fits chassis
EngineAll
Fitment
{"make":"BMW","models":["M3","M4"],"chassis":[],"derived_chassis":[],"years":"2014+","year_start":2014,"year_end":null,"lci":null,"engine":[],"drivetrain":null,"body":[],"suspension":[],"exclusions":[],"notes":[],"flags":["no chassis","unparsed qualifier"],"verified":true}
CSF · cooling

CSF Front Mount Heat Exchanger with Rock Guard

for BMW F80 F82 F83 M3 M4 (2014+)

Checking fitment…
$699
Returns: 30-day returns on unused, uninstalled parts in original packaging. Electrical and special-order parts are returnable only if defective. Refund policy
Want it installed? Book it at SPEEDhaus, Edmond OK Not sure it fits? Ask us

The S55 power BMW F8X suffers heavily from heat soak. While the ideal solution is pairing the Front Mount Heat Exchanger with the Charge-Air-Cooler, you can still see significant improvements with just the Heat Exchanger. The ability for the system to remove as much heat as possible is the bigger of the two weak points in the system. So if you are planning to upgrade your S55 cooling system and can only start with one, the Heat Exchanger is the right choice to start with. The CSF Heat Exchanger is a true "Drop-in Fit" Requiring No Modifications to Install. It accepts All attaching OEM components including "Quick-Connect" hoses, mounting brackets, OEM X-Brace and all air ducting/shrouding. The CSF #8075 comes in a Polished Finish. It is also available in a Satin Black Finish for OEM+ look (CSF #8075V).

  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick-Connect" Hoses, Mounting Brackets, OEM X-Brace and All Air Ducting/Shrouding.
  • Dual-Pass Flow Structure Allows the Coolant to Flow Across the Core of the Radiator Two Times Before Exiting the Radiator for the Lowest Outlet Temperature Possible (OEM Style Design)
  • 2026 Update: New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
  • CNC Machined, OEM-Style Mounting Brackets & Fittings for Superb Fit and Durability
  • 2-row 42mm Core (Dual Core) Featuring CSF's Exclusive B-tube Technology
  • CNC Machined, OEM-Style "Quick-Connect" Inlet/Outlet Connections
  • Includes Removable Aluminum Rock Guard
  • Replaces OEM Part Number: 17112284608
  • All-Aluminum Race Style Drain Plug
  • 1-Hour "Mirror Finish" Hand Polish

Brand: CSF   Part #: 8075
